Electronics

Applications of Consumer Electronics Adhesives

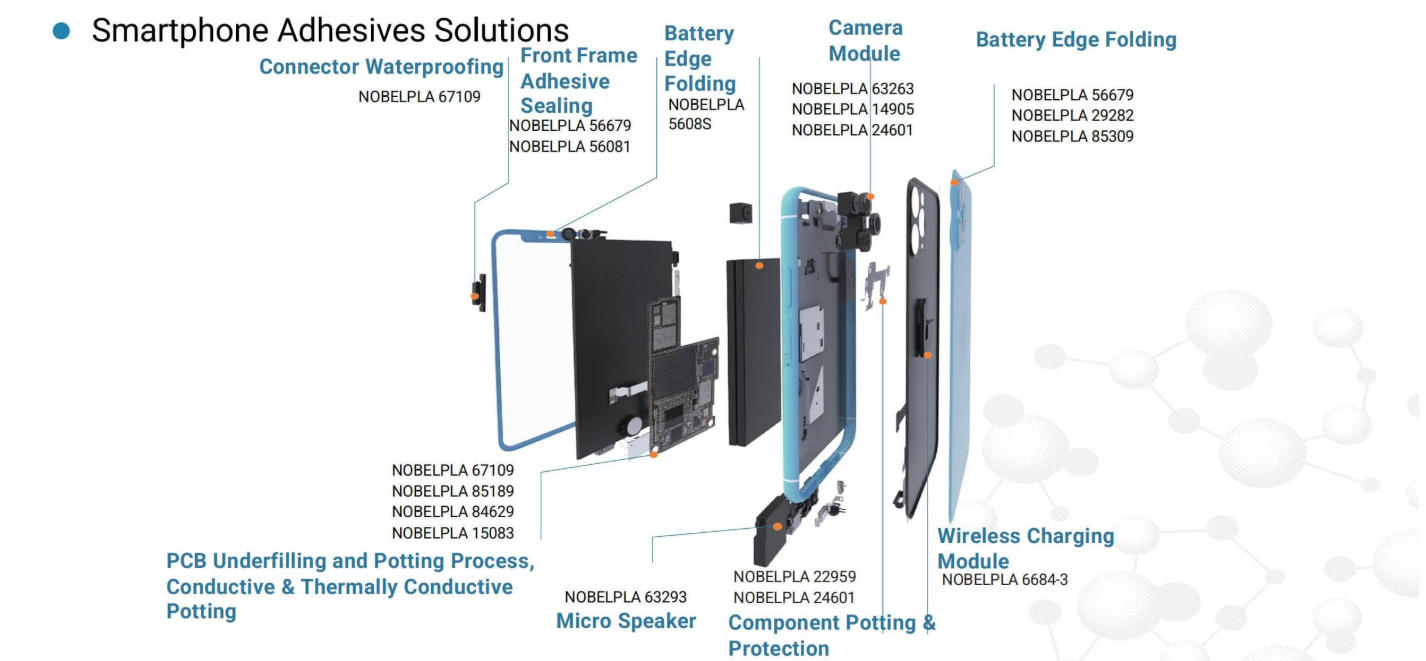

Smartphone Adhesives Solutions

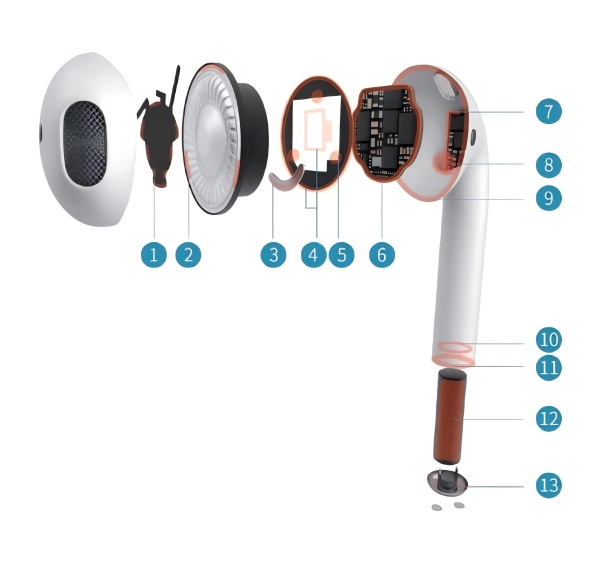

Adhesive Solutions for TWS Bluetooth Headset Earbuds

No.	Application	NOBELPLA Solution
1	Light Guide Pillar Dispensing Fixation	NOBELPLA 85309
2	Speaker Bonding (UV/Moisture Adhesive Curing)	NOBELPLA 24601
3	Magnet Dispensing Fixation	NOBELPLA 24601
4	Bass Tube Sealing Bonding	NOBELPLA 85309
5	Absorber Sheet Bonding	NOBELPLA 85309
6	PCB Assembly to Rear Case Dispensing Fixation	NOBELPLA 24601
7	Front Case Split Hot Melt Adhesive Bonding	NOBELPLA 56679
8	Small Board & Main Board Support Rib Bonding	NOBELPLA 85309
9	MIC Small Board UV Adhesive Dispensing Fixation	NOBELPLA 24601
10	UV Adhesive Dispensing Inside Rear Case Base	NOBELPLA 24643
11	Rear Case Hot Melt Adhesive Bonding	NOBELPLA 56679
12	Single-Side Upper Edge Fixation of Battery	NOBELPLA 85309
13	Charging PAD Fixation	NOBELPLA 56679

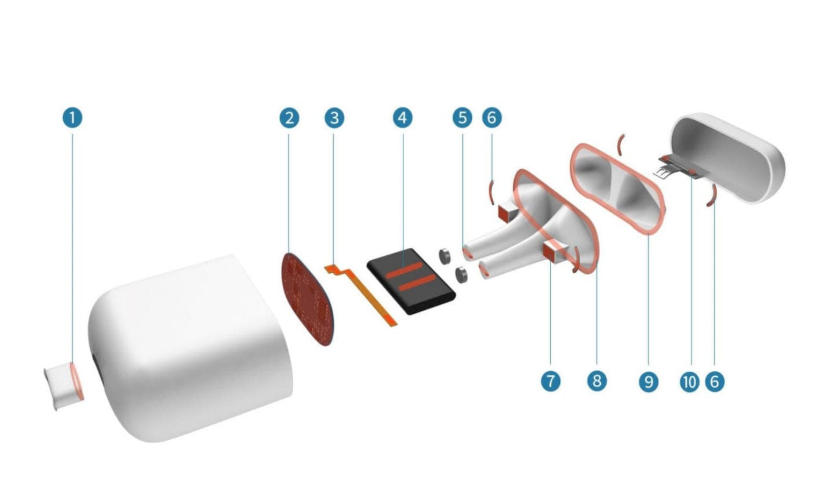

Adhesive Solution for TWS Bluetooth Earphone Charging Case

No.	Application	NOBELPLA Solution
1	Type-C Sealing	NOBELPLA24601
2	PCB Conformal Coating	NOBELPLA85309
3	Lower Liner FPC Adhesive Bonding & Fixation	NOBELPLA24643
4	Battery Compartment Fixation	NOBELPLA85309
5	Charging PIN Solder Joint Protection	NOBELPLA24643
6	Lower Liner Magnet Installation & Fixation	NOBELPLA63293
7	Upper Inner Shell Magnet Fixation	NOBELPLA63293
8	Lower Outer Shell Assembly & Fixation	NOBELPLA56679
9	Upper Cover Fixation	NOBELPLA56679
10	Hinge Assembly & Fixing Pin Fixation	NOBELPLA24601

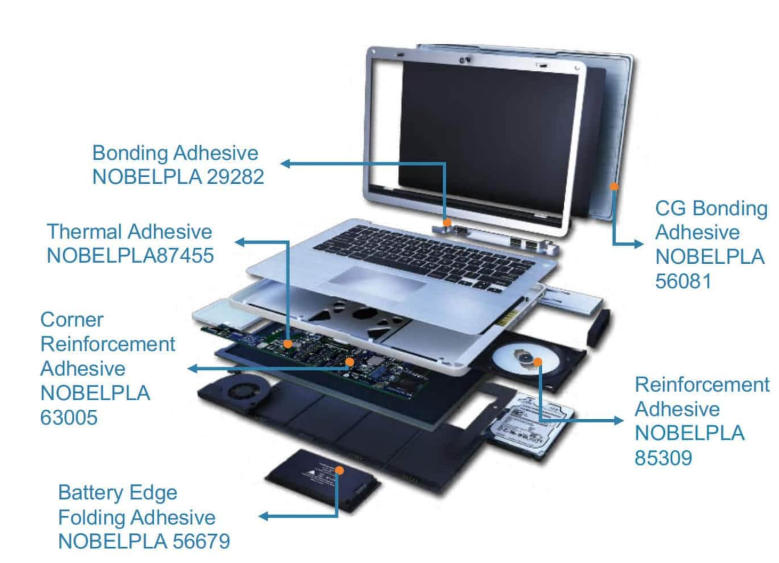

Adhesive Solution for Laptop

Component	Application	NOBELPLA Solution
Clips, Magnets and Hinges	Galvanized Iron Components, Iron Chain Cores, etc.	NOBELPLA29282
Thermal Dissipation for Chips on PCBA	Epoxy Molding Compound	NOBELPLA87455
Corner Reinforcement for Chips on PCBA	Corner Bonding (Chip & PCB)	NOBELPLA63005
Battery Edge Folding Bonding	Aluminum Plastic Film	NOBELPLA56679
Flexible Circuit Board Reinforcement	PI and FR4	NOBELPLA85309
Display Glass Cover Bonding	Ink Glass and Anodized Aluminum	NOBELPLA56081

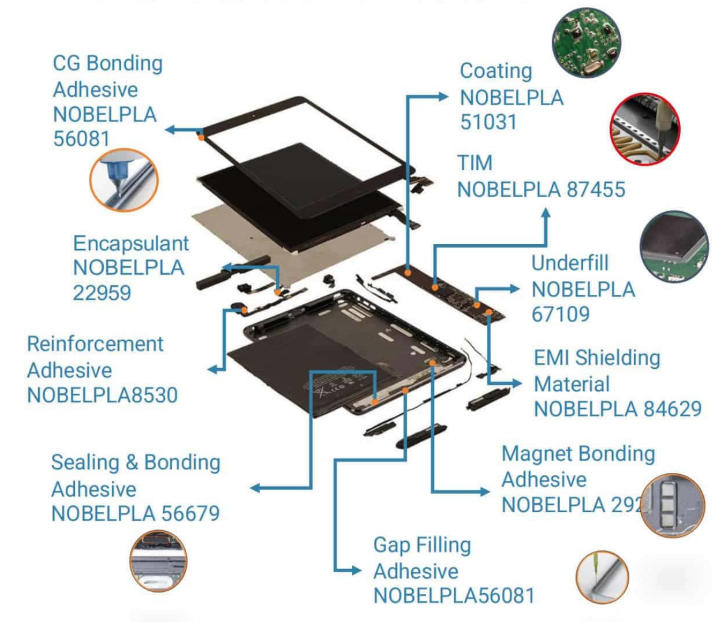

Adhesive Solution for Tablet PC

Component	Application	NOBELPLA Solution
Touch Panel Assembly	Ink Glass, Anodized Aluminum, Plastic, etc.	NOBELPLA56081
Flexible Circuit Board Reinforcement	PI or FR4	NOBELPLA22959
Rear Cover Bonding & Sealing	Anodized Aluminum and Plastic	NOBELPLA56679
Gap Filling	Anodized Aluminum or Plastic	NOBELPLA56081
Magnet Bonding	Anodized Aluminum and Iron Core	NOBELPLA29282
Electromagnetic Shielding Material	Metal, Plastic, etc.	NOBELPLA84629
Component Underfilling	Chips (BGA, CSP, QFN)	NOBELPLA67109
Chip Thermal Dissipation	Epoxy Molding Compound	NOBELPLA87455
Circuit Board Coating	PCB and Various Components	NOBELPLA51031

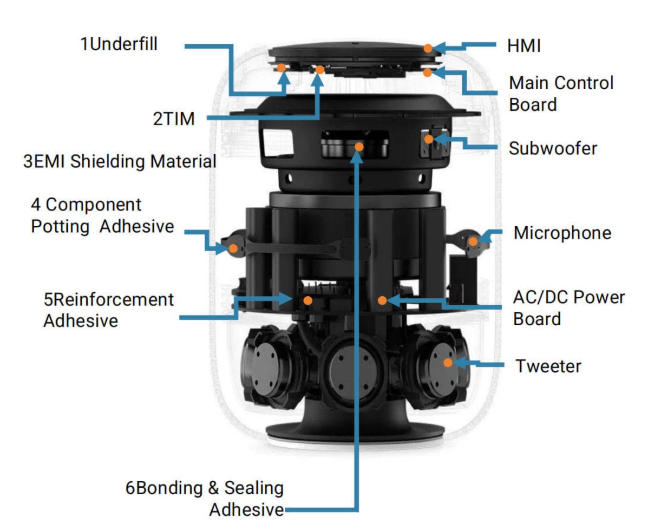

Adhesive Solution for Smart Speaker

No.	Application	NOBELPLA Solution
1	Underfill	NOBELPLA 67109
2	TIM	NOBELPLA 85189
3	EMI Shielding Material	NOBELPLA 84629
4	Component Potting	NOBELPLA 14905
5	Component Reinforcement	NOBELPLA 85309
6	Speaker Enclosure Sealing	NOBELPLA 14463



Introduction to the Structure of Smart Head-mounted VR/AR Devices



1. Bonding of Fabric and Plastic Parts 2. Bonding of Lens and Plastic Sleeve 3. Bonding of OLED Display Moduleand Plastic Sleeve 4. Bonding of Two Batteries 5. Mylar Edge Wrapping for BatteryModule 6. Adhesive Backing for Charging FPCin Battery Compartment 7. Mylar Bonding for Battery Module 8. Bonding of Pouch Cell and MetalCase 9. Bonding of Left & Right FPCAntennas and Plastic Bracket 10. FPC Antenna Bonding 11. Bonding of Microphone FPC andPlastic Board 12. Bonding of Microphone Mesh

13. Bonding of MushroomFastener and Plastic Parts 14. Bonding of Metal Sheetand Plastic Sheet 15. Bonding of Fabric andPlastic Parts 16. Bonding of Inner andOuter Edges of the Ring 17. Bonding of FPCAntenna on Inner Ring 18. Bonding of FPC onInner Ring of the Circle 19. Foam Bonding 20. Metal Part Bonding 21. Rubber Key Bonding



Adhesive Application Solution for Smart VR/AR Head-mounted Displays

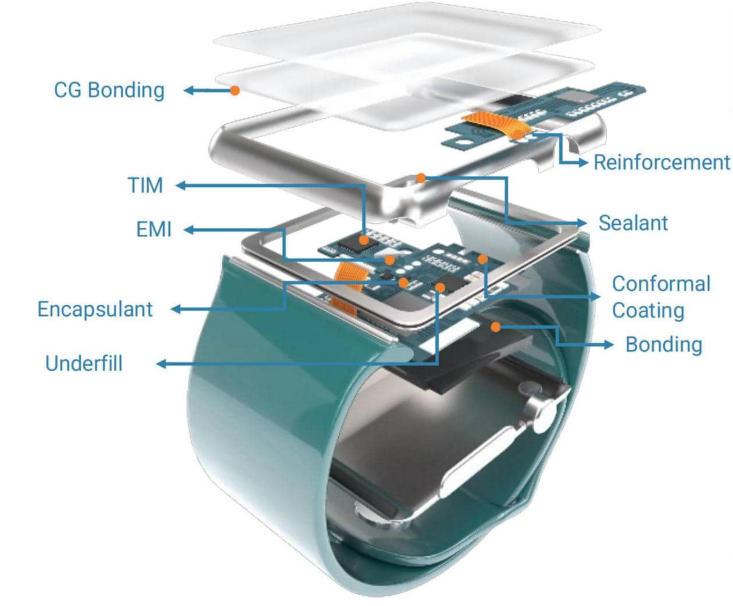

Adhesive Application Solutions for Smartwatches

Component	Application	NOBELPLA Solution
Structure Bonding	CG Bonding	NOBELPLA5608S
Structure Bonding	Shell Bonding and Sealing	NOBELPLA63005
Structure Bonding	Sealant	NOBELPLA14463
Display	Reinforcement for FPC	NOBELPLA15083
PCBA	Conformal Coating	NOBELPLA51031
PCBA	Chip TIM	NOBELPLA85189
PCBA	BGA / QFN	NOBELPLA67109
PCBA	Component	NOBELPLA24601
PCBA	EMI	NOBELPLA84629

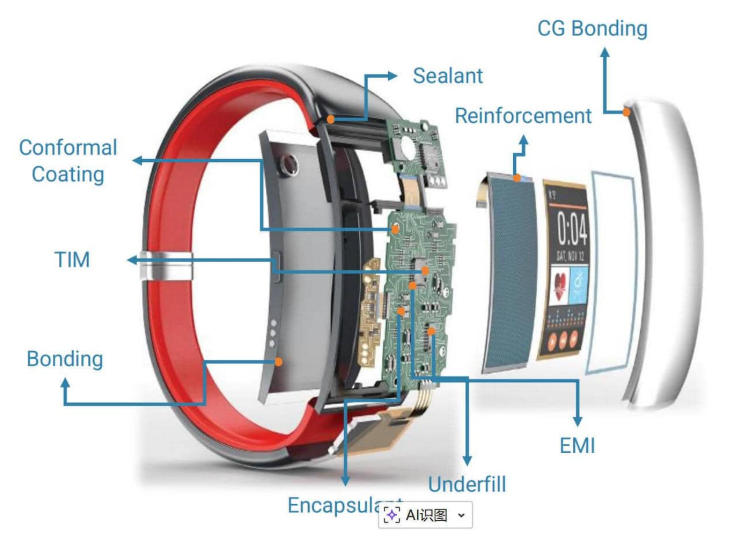

Adhesive Application Solutions for Smart Bands

Component	Application	NOBELPLA Solution
PCBA	Conformal Coating	NOBELPLA51031
PCBA	Chip TIM	NOBELPLA85189
PCBA	BGA / QFN	NOBELPLA67109
PCBA	Component	NOBELPLA24601
PCBA	EMI	NOBELPLA84629
Structure Bonding	Shell Bonding and Sealing	NOBELPLA56081
Structure Bonding	CG Bonding	NOBELPLA56679
Structure Bonding	Sealant	NOBELPLA56081
Display	Reinforcement for FPC	NOBELPLA15083

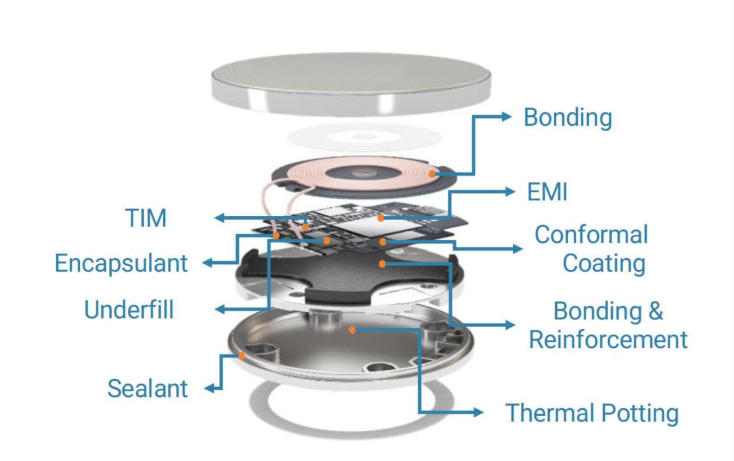

Adhesive Application Solutions for Wireless Charging Docks

Component	Application	NOBELPLA Solution
Charger End	Case & Parts bonding	NOBELPLA56679
Charger End	Membrane bonding	NOBELPLA29196
Charger End	Magnet bonding	NOBELPLA29282
Charger End	Thermal potting	NOBELPLA85189
PCBA	PCBA Underfill	NOBELPLA67109
PCBA	PCBA Encap	NOBELPLA63005
PCBA	EMI	NOBELPLA84629

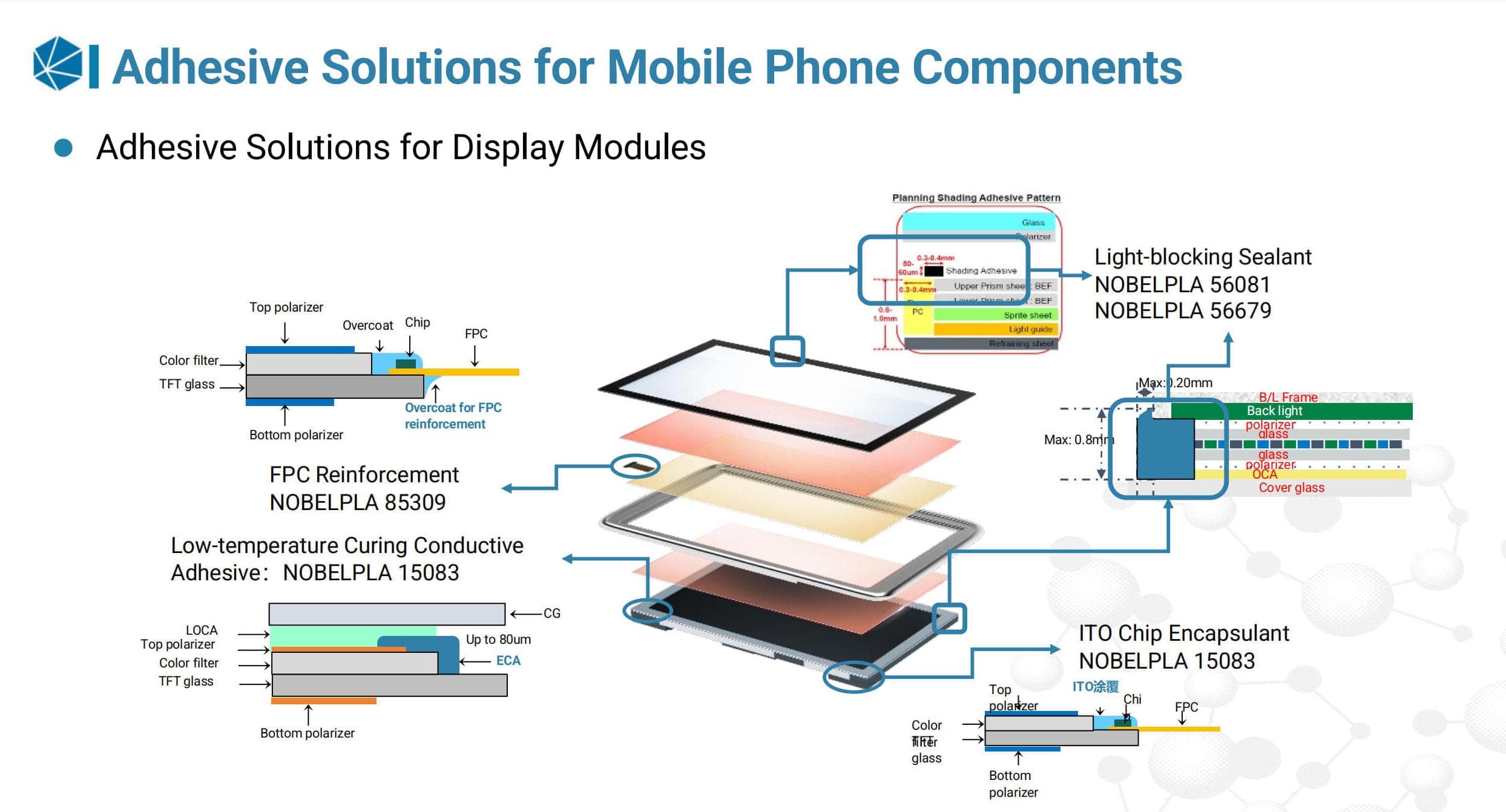

Adhesive Solutions for Display Modules

Adhesive Solutions for Linear Vibration Motor Components

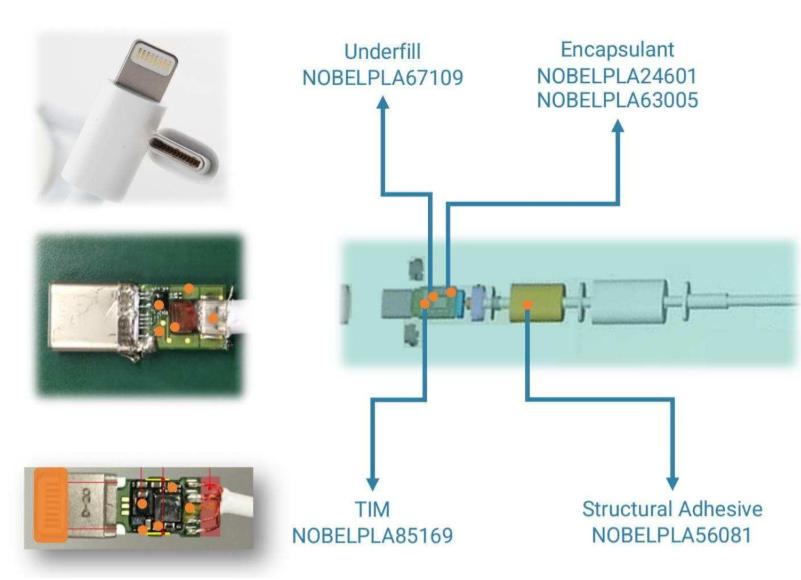

USB-C Adhesive Solutions

Component	Application	NOBELPLA Solution
Type C	Boot bonding	NOBELPLA56081
Type C	Component Encap	NOBELPLA24601
Type C	Wire Encap	NOBELPLA56081
PCBA	PCBA Underfill	NOBELPLA67109
PCBA	PCBA Encap	NOBELPLA63005
PCBA	Thermal Potting	NOBELPLA85189



Main Adhesive Application Scenarios for Assembly
